Weight:  60kg
Safe Working Load (SWL): 10t
Compatible With: All Groundforce Trench Sheets
Suitable Installation Methods:  Slit Trench and Dig & Rush

    Benefits include:

    • Elimination of accidental sheet release
    • Reduced PPI
    • Fewer lifting devices on site
    • Full excavator control during pitching
    • No changing attachments
    • Work safely from the ground
    • Easy to use



    SheetMaster 2.0 was developed from customer needs to improve safety when installing trench sheets. We worked alongside them and with UK manufacturers to develop a product that improved safety, speed and admin. Groundforce Shorco are proud to introduce this innovative product to the market as we strive to set the new standard for sheet handling.

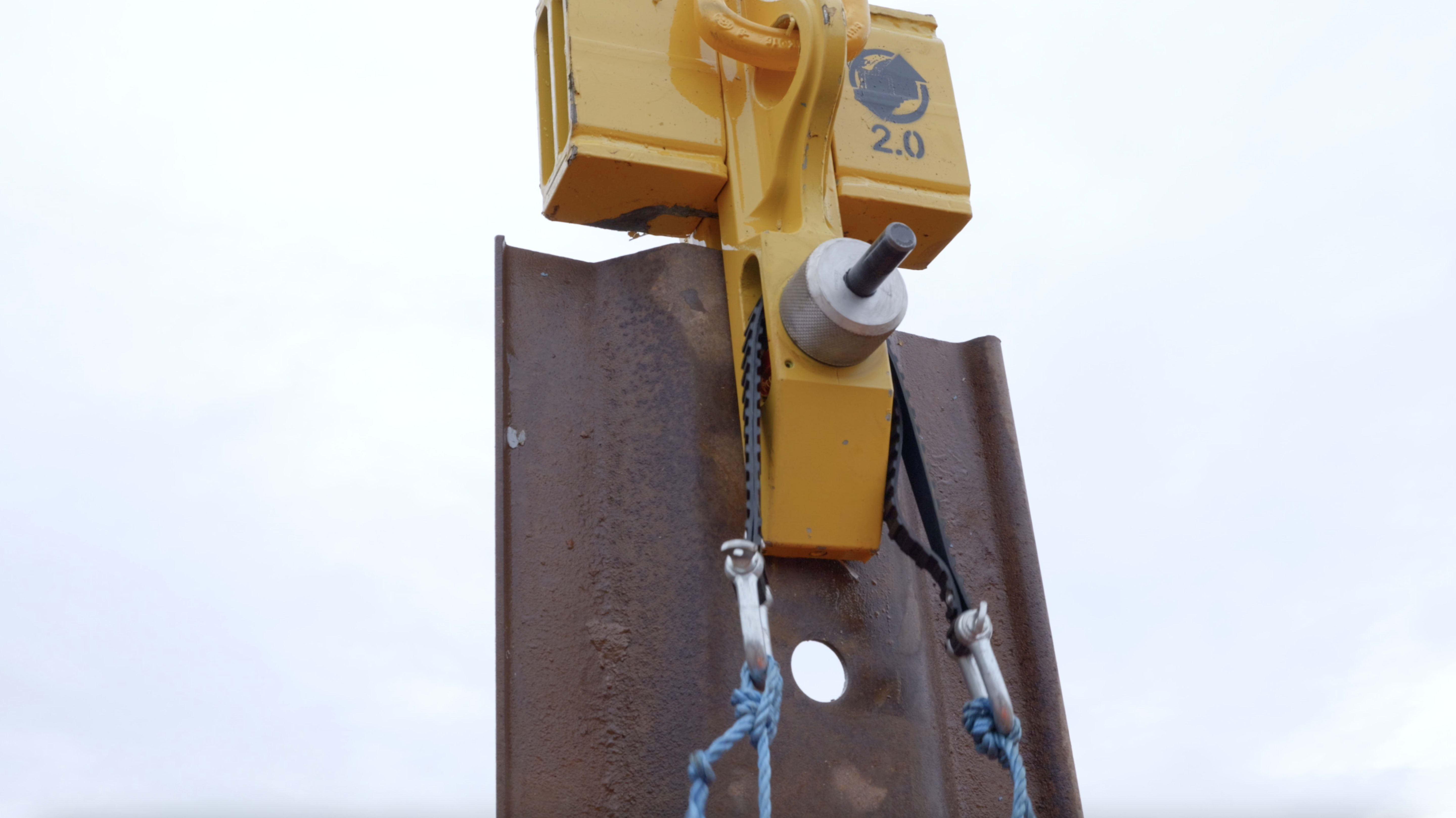

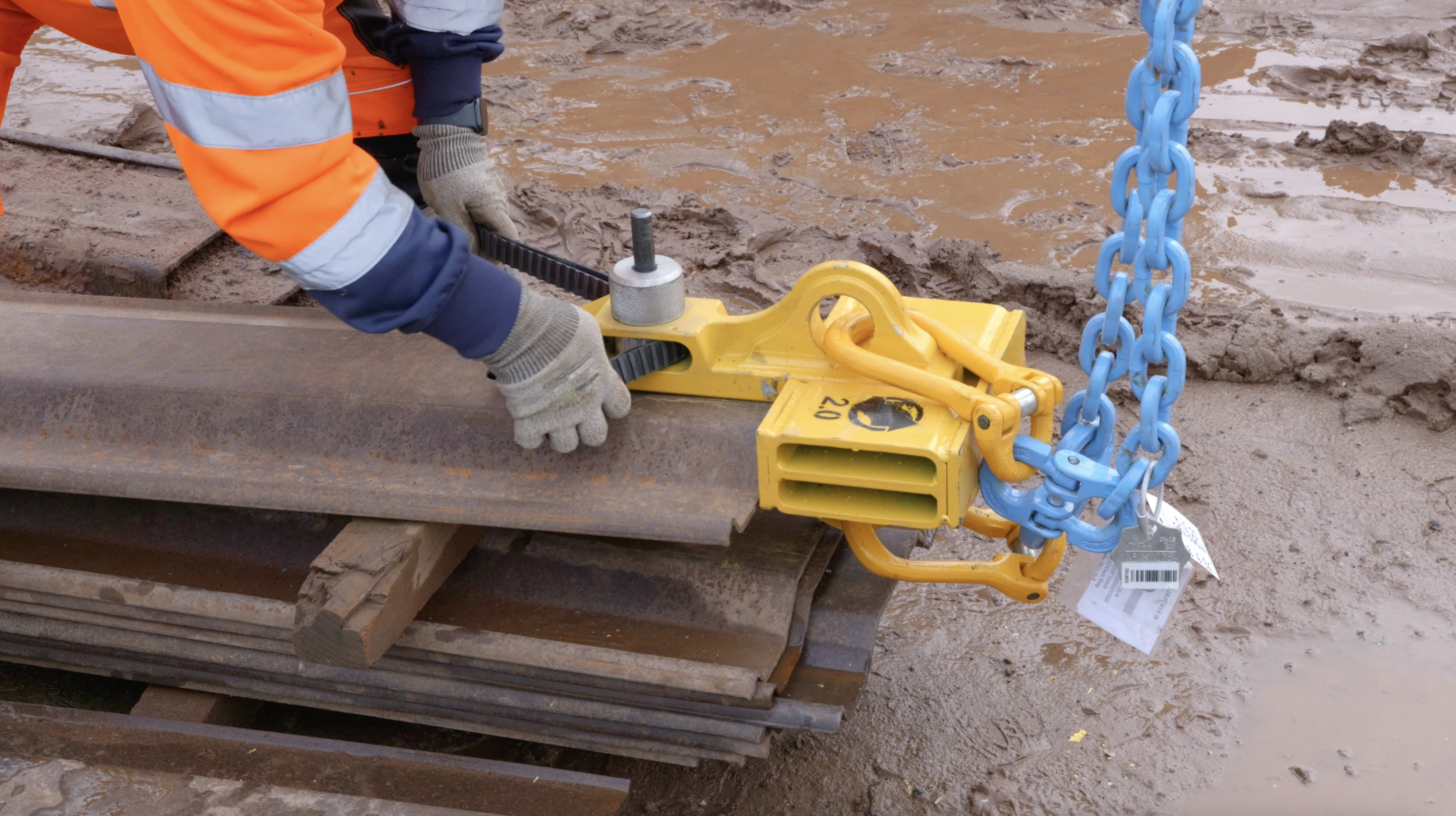

    ATTACH - Connect the SheetMaster 2.0 to the sheet and engage the SafeRelease pin.

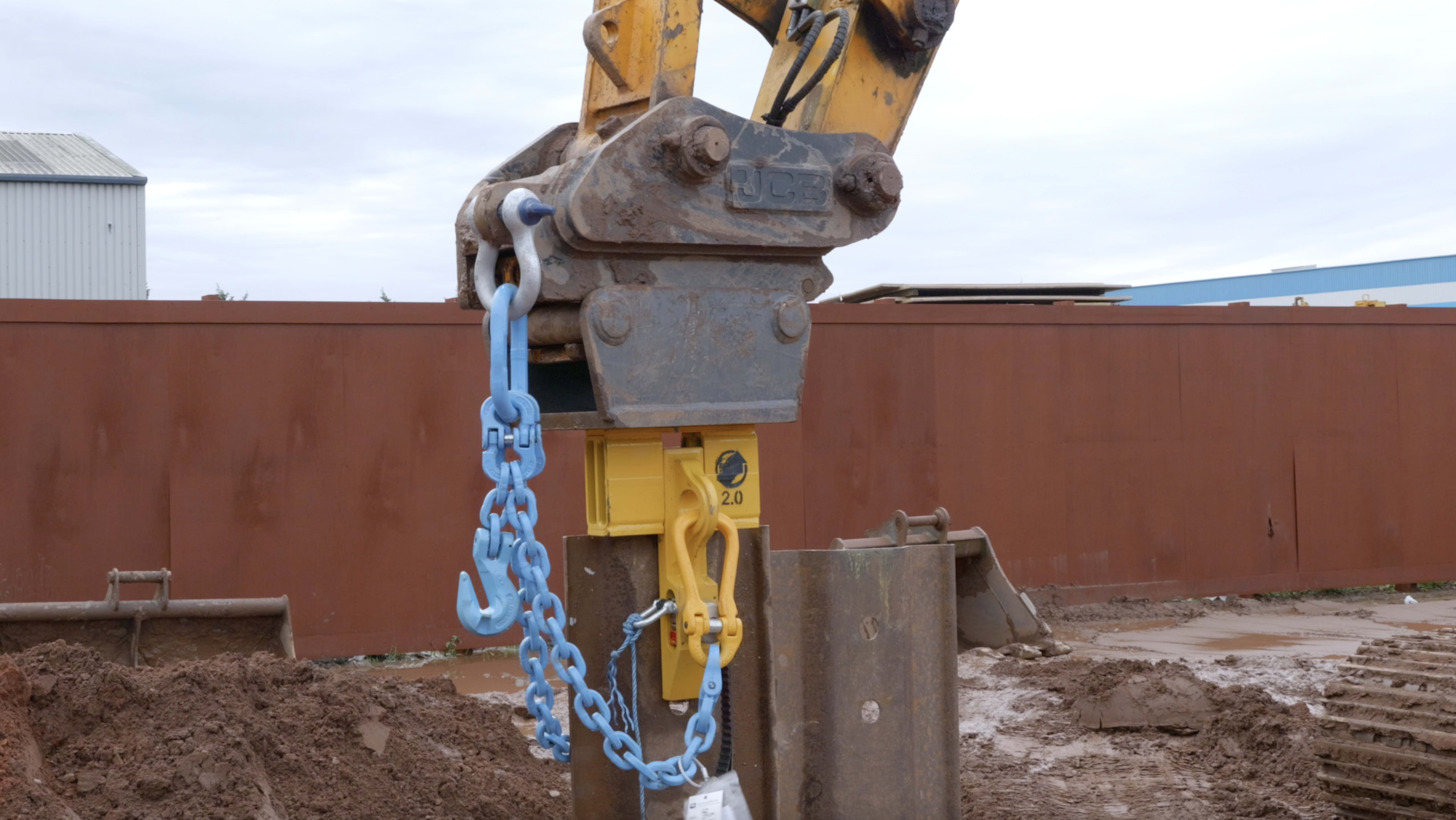

    PITCH - Position the sheet in the desired location and apply pressure with the excavator before stepping away.

    DRIVE - Drive the sheet without changing attachments or releasing the sheet from the excavator.

    RELEASE - Use the SafeRelease ratchet mechanism to release the pin and remove from the sheet when ready.

    EXTRACT - Simply repeat the process in reverse with the same tool.
